- Unique adsorbent loading system
- System of compressed air dissipation at the inlet to the adsorber
- Protective, pre-drying layer at the bottom of the adsorber
- Dynamic adsorption bed compression system
- Automatic adjustment of adsorption cycles
Oxygen generators PSA and VPSA consist of two adsorption columns filled with Na13x zeolite (molecular sieve), in the layer of which air separation takes place.
The PSA oxygen generator uses a unique adsorber filling system developed by our specialists, which increases the service life of the zeolite, protects it from abrasion and reduces its drift, which in turn increases the service interval of pneumatic valves.
The compressed air distribution system makes it possible to use the entire adsorbent layer and achieve maximum efficiency of the oxygen station while saving energy and compressed air.
Serves for air compression, uses screw oil-filled or oil-free compressor
Serves as a kind of "buffer" of compressed air to equalize the pressure at the inlet to the compressor adsorption columns
Serves to equalize pressure surges and partial accumulation
Serves to remove moisture from compressed air to the dew point of 40 °F
To remove micro-particles of oil, dust and other contaminants from compressed air
Serves for separation of prepared compressed air into its main components - nitrogen and oxygen
01
Explosion-proof design
Version that allows to use the equipment in hazardous areas
02
Booster compressor
Serves to raise the pressure of the production gas
03
Filling station
Equipment complex allowing to fill standard cylinders with compressed gas at a pressure of up to 2000 psig
04
Aftertreatment system
Enables production oxygen or higher nitrogen concentrations
Size, LxWxH, mm: 1400x800x1650
Weight, kg: 620
Capacity, SCFH
Air required, SCFM
2,0
0,37
2,0
0,37
2,0
0,37
Size, LxWxH, mm: 1500x850x1700
Weight, kg: 670
Capacity, SCFH
Air required, SCFM
4,0
0,74
4,0
0,74
4,0
0,74
Size, LxWxH, mm: 1600х900х2000
Weight, kg: 750
Capacity, SCFH
Air required, SCFM
5,0
0,93
5,0
0,93
5,0
0,93
Size, LxWxH, mm: 1110х990х1660
Weight, kg: 490
Capacity, SCFH
Air required, SCFM
10,5
2,46
10,5
2,46
10,5
2,46
Size, LxWxH, mm: 1312x900x1976
Weight, kg: 800
Capacity, SCFH
Air required, SCFM
6,0
1,40
6,0
1,40
6,0
1,40
Size, LxWxH, mm: 1200x1100x2000
Weight, kg: 850
Capacity, SCFH
Air required, SCFM
8,0
1,90
8,0
1,90
8,0
1,90
Size, LxWxH, mm: 1750х1000х2100
Weight, kg: 900
Capacity, SCFH
Air required, SCFM
10,0
1,85
10,0
1,85
10,0
1,85
Size, LxWxH, mm: 1800x1100x2250
Weight, kg: 1300
Capacity, SCFH
Air required, SCFM
15,0
2,77
15,0
2,77
15,0
2,77
Size, LxWxH, mm: 1900x1200x2400
Weight, kg: 1400
Capacity, SCFH
Air required, SCFM
20,0
3,69
20,0
3,69
20,0
3,69
Size, LxWxH, mm: 1800x1300x2500
Weight, kg: 1700
Capacity, SCFH
Air required, SCFM
30,0
5,54
30,0
5,54
30,0
5,54
Size, LxWxH, mm: 2100x1500x2500
Weight, kg: 2200
Capacity, SCFH
Air required, SCFM
40,0
7,38
40,0
7,38
40,0
7,38
Size, LxWxH, mm: 2*1800x1250x2500
Weight, kg: 2*1500
Capacity, SCFH
Air required, SCFM
50,0
11,0
50,0
11,0
50,0
11,0
1. Choose the right oxygen concentration
The wrong concentration can be a factor of several times the price.
2. Calculate the capacity of the station
Considering all consumer parameters, calculate the total amount of oxygen consumed. Pay attention to the units of measurement, the flow should be given to normal conditions, 37 SCFH (sft3/h) at 15 psig and 70°F.
3. Take into account the operating conditions
All station parameters are given under standard operating conditions of 70°F, higher temperatures above 95°F have a negative effect on the performance of the station.
4. Choose a compressor with a 10% margin
Many factors must be taken into account for the correct operation of the system: the nature of consumption, the number of peak loads, additional losses of compressed air, the volume of air receivers and much more.
We do not share your personal information with third parties. By clicking the button, you consent to the processing of personal information.

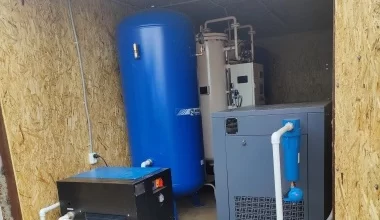

Supplied equipment: Oxygen Generator GO-5
Concentration: 95%
Capacity: 145 m3/h

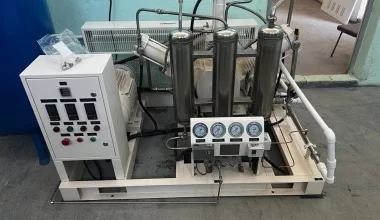

Supplied equipment: Oxygen Generator GO-15
Concentration: 93 +/- 2%
Capacity: 560 m3/h

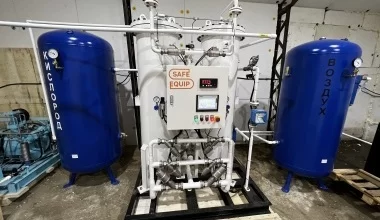

Supplied equipment: Oxygen station GO-30
Concentration: 93%
Capacity: 1200 m3/h
Supplied equipment: Oxygen Generator GO-15
Concentration: 93 +/- 2%
Capacity: 600 m3/h
All generator models can be mounted on a single frame for quick installation in any heated room. In this case, the equipment is in full technical readiness for start-up.
We produce oxygen and pure nitrogen generators in containerized versions, based on 20 or 40-foot shipping containers, in any climatic design - both for tropical climates and for the far north.
Any generators can be mounted in a special container with autonomous power supply systems (diesel or gas generator) and installed on a chassis for any vehicle or trailer.
Supplied equipment:
PSA Nitrogen system GB-1500
Concentration: 97%
Capacity: 55000 SCFH
Supplied equipment:
Nitrogen station
Concentration: 99.9995%
Capacity: 13420 SCFH
Supplied equipment:
Hydrogen station
Concentration: 99.999%
Capacity: 600 SCFH
Supplied equipment:
Nitrogen generator GN-120
Concentration: 99.995%
Capacity: 1715 SCFH
Supplied equipment:
Nitrogen generator GN-20
Concentration: 99.99%
Capacity: 380 SCFH
Supplied equipment:
Oxygen Generator GO-5
Concentration: 95%
Capacity: 145 SCFH
Supplied equipment:
Nitrogen generator GN-15
Concentration: 99.95%
Capacity: 385 SCFH
Supplied equipment:
Nitrogen generator GN-23
Concentration: 99.99%
Capacity: 700 SCFH
Supplied equipment:
Nitrogen generator GN-15
Concentration: 99,5%
Capacity: 590 SCFH
Supplied equipment:
Nitrogen generator GN-8
Concentration: 99.9%
Capacity: 230 SCFH
Supplied equipment:
Nitrogen generator GN-9
Concentration: 99%
Capacity: 300 SCFH
Supplied equipment:
Oxygen Generator GO-15
Concentration: 93 +/- 2%
Capacity: 560 SCFH
Supplied equipment:
Oxygen station GO-30
Concentration: 93%
Capacity: 1200 SCFH
Supplied equipment:
Nitrogen station GN-33
Concentration: 99,5%
Capacity: 1230 SCFH
Supplied equipment:
Nitrogen station GNS-70
Concentration: 99,99%
Capacity: 970 SCFH
Supplied equipment:
Oxygen Generator GO-15
Concentration: 93 +/- 2%
Capacity: 600 SCFH
